Repair Procedure
Drum Motor
Click on the small images on this page to see a higher-resolution version of the image. The larger image will open in a new window that can be closed after viewing

1 Begin by following these procedures:
Front Cover
Bearing Plate and Drum
Remove Fan
Remove Rear Cover
Remove Top Cover

2 Clip the tie wraps that hold the wire harness together.

3 Use needle nose pliers to remove the two motor connectors from the Main Circuit Board as indicated here. Pull only on the connectors themselves- do not pull on the wires! Wiggling them a bit will help loosen them.

This view of the Main Circuit Board shows the location of the two motor wires.

4 Remove the 4 Phillips head screws indicated in this diagram. Support the motor as you do this. It is heavy, so do not let if fall.


Remove the drip guard over the solenoid if so equipped.

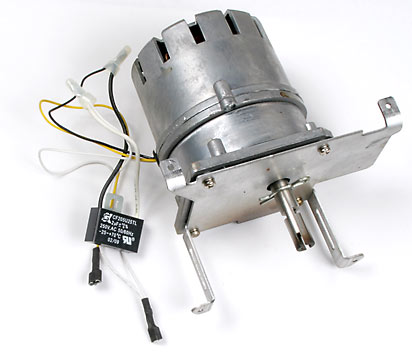

6 Move the motor off to the side and remove the one Phillips head screw holding the motor capacitor in place. The motor assembly can now be removed from the machine. If this motor is to be reused, take care to not scrape or damage the insulation of the wires.


To reinstall the Drum Motor
- First attach the capacitor using the original screw being sure not to pinch any wires as you tighten the screw.
- Attach the drip guard (if the machine was equipped with same)
- Locate the motor assembly on the roaster, being sure that all the wires are correctly routed and there are no wires pinched beneath the motor's mounting plate
- Loosely install all four screws making sure the lock washers are in place before tightening them.

8 Re-attach the two wires to the main circuit board. Group the wires together and replace the two tie wraps to hold them in place. Do not over-tighten the tie wraps. Snip off the wraps' excess.

9 To complete the process, reassemble the following:
Replace Top Cover
Replace Rear Cover
Replace Fan
Replace Bearing Plate and Drum
Replace Front Cover
10 With the machine completely reassembled be sure to refer to our instructions to check the clearance between the rear end of the roasting drum and the rear wall of the roast chamber! This is critical to the life of the drum motor!
